: Quality Pocket Surf PS1 Unit & Probe Repair Services :





The quality of products' surface finishes is crucial. When your Pocket Surf PS1 needs to be repaired, you need a company you can trust with the know how to repair the item completely and professionally; and that's Bryco Industrial Services. Bryco Industrial Service repairs and rebuilds surface testers with a quick turnaround rate.

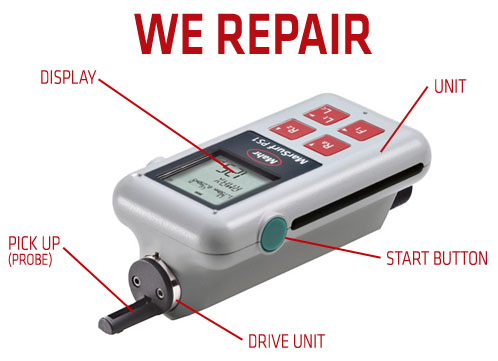

Whether your Pocket Surf PS1 needs probe repair, a new diamond stylus, a replacement probe, or needs to be completely rebuilt, Bryco Industrial Service can repair your roughness tester.

Bryco Industrial Service provides nationwide services repairing and replacing the Pocket Surf PS1 Unit and other probes.

PS1 Probe Repair PS1 Repair

Pocket Surf PS1 Surface Testers Available Parameters

Parameter Output Meaning Standards
Ra RA Arithmetic means roughness Ra DIN EN ISO 4287: 1998; ISO 4287: 1997; JIS B 0601: 2001; ASME B46
Rq RQ Root mean square roughness Rq DIN EN ISO 4287: 1998; ISO 4287: 1997; JIS B 0601: 2001; ASME B46
Rz            RY (JIS)     equiv. to Rz RZ Mean peak-to-valley height Rz (acc to ISO) or Ry (acc to JIS) DIN EN ISO 4287: 1998; ISO 4287: 1997; JIS B 0601: 2001; ASME B46
Rz (JIS) RZI mean height Rz of profile elements JIS B 0601: 2001 (was; ISO 4287/1: 1984)
Rmax RMAX Maximum roughness depth Rmax DIN 4768: 1990
Rp RP Mean profile peak height Rp DIN EN ISO 4287: 1998; ISO 4287: 1997
Rp (ASME) RP Maximum profile peak height Rp ASME B46
Rpm (ASME) RPM Mean profile peak height Rp ASME B46
Rpk RPK Reduced peak height Rpk DIN EN ISO 13565-2; ASME B46
Rk RK Core roughness depth Rk DIN EN ISO 13565-2: 1998; ASME B46
Rvk RVK Reduced valley depth Rvk DIN EN ISO 13565-2: 1998; ASME B46
Mr1 MR1 Smallest material ratio Mr1 of roughness core profile DIN EN ISO 13565-2: 1998; ASME B46
Mr2 MR2 Largest material ratio Mr2 of roughness core profile DIN EN ISO 13565-2: 1998; ASME B46
A1 A1 Material-filled profile peak area A1 DIN EN ISO 13565-2: 1998; ASME B46
A2 A2 Lubricant-filled profile valley area A2 DIN EN ISO 13565-2: 1998; ASME B46
Vo VO Oil-retaining volume Vo
Rt RT Total height Rt of R-profile DIN EN ISO 4287: 1998; ASME B46
R3z R3Z Arithmetic mean third peak-to-valley height R3z DB n 31007: 1983
RPc RPC Peak count RPc is the number of profile elements (see RSm) per cm that exceed the set upper profile section level c1 and than fall short of the lower c2 EN 10049: 2005; ASME B46
Rmr        tp (JIS, ASME)       equiv. to Rmr RMR Material ratio Rmr DIN EN ISO 4287: 1998; ISO 4287: 1997; JIS B 0601: 2001; ASME B46
RSm RSM Mean width RSm of profile elements (was: groove spacing) DIN EN ISO 4287: 1998; ISO 4287: 1997; JIS B 0601: 2001; ASME B46
R R Mean depth R of roughness motifs ISO 12085: 1996
Ar AR Mean width Ar of roughness motifs ISO 12085: 1996
Rx RX Maximum depth Rx of profile irregularity ISO 12085: 1996


No charge for evaluatations. Send your gauge for a no-hassle quote. No repairs will begin until approval is made.
