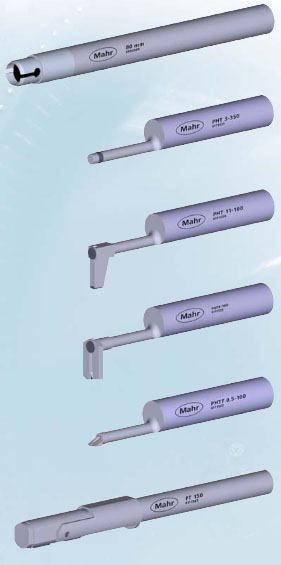

80 mm (3.15 in) pick-up extension
for example, for measuring points located deep within cylinders.

PHT 3-350 pick-up
for measurements in bores from dia.
3 mm (0.12 in).

PHT 11-100 pick-up
for measurements at recessed measuring points, e.g. in grooves from 2.5 mm (0.10 in) wide and up to 7.5 mm (0.30 in) deep.

PHTR 100 pick-up
for measurements on concave and convex surfaces.

PHTF 0.5-100 pick-up
for measurements on tooth flanks.

PT 150 pick-up
Dual-skid pick-up for measurements on metal sheets and roller surfaces
according to DIN EN 10049 (SEP).

Pick-up set (not illustrated)
consisting of
• PHT 3-350 pick-up (6111521)
• P HT 11-100 pick - up (6111 524)
